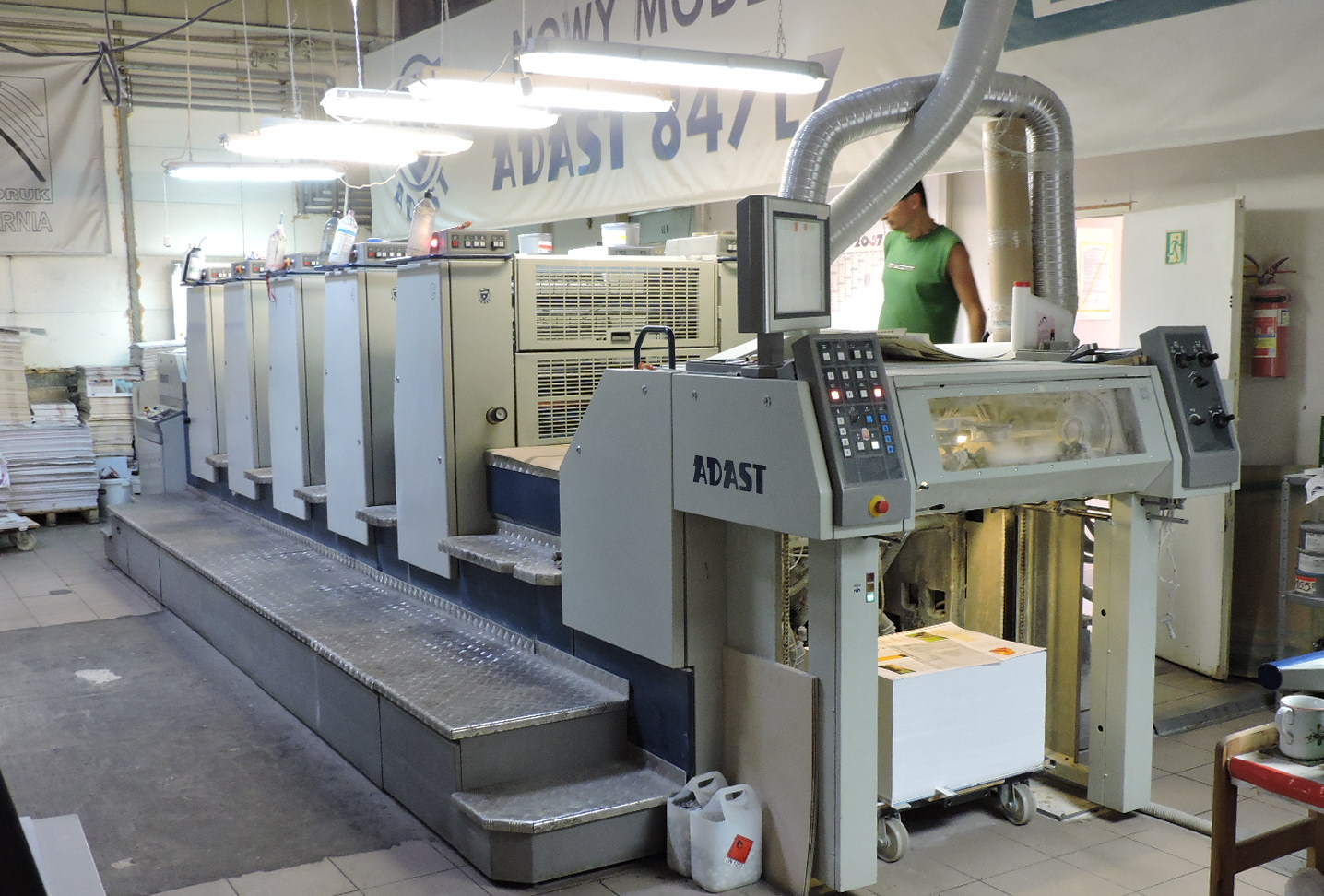

ADAST Dominant 847 LZ, 2007

ADAST Dominant 847 LZ, 2007

Description:
Max. paper size: 520*740mm
Max print format: 508*735mm
Min. paper size: 280*330mm
Max thickness of paper: 0,50mm
Thickness of paper: 30-380gr/m2
Maximum print speed: 12.000 sh/h
Minimum print speed: 3.000 sh/h
The limit of the clamp grip: 12mm
Offset plate format: 575*740*0,3mm
Offset rubber format: 635*752*1,9mm
Stack height on overlay: 960mm
Stack height on overlay: 820mm
Weight of lacquer circulation: 80kg
Dryer weight INKDRY: 100kg
Central control system OMRON
Control of the machine from the touch-colored 15″ panel TOUCH-SCREEN on overlay
Electronic control – precise height adjustment of the stack relative on the overlаp head
Double sheets control
Alcohol dampening ADAMATIC with no load moisturizing rollers Bottcher
Сooling and circulation of the dampening solution MGE with automatic dosage of alcohol
Inkwells with a sectoral knife and removable beads for easy cleaning
Matrix cylinder with quick fastening plate and split plate
Matrix cylinder with quick system of fit BACGER
High delivery with inclined control panels
High-pressure сompressor KEISER
Low pressure compressor BECKER T 3.80
Blower on feeder and delivery
Control of humidification, dehumidification registers, fans of the lining of the touch panel
Programming counter
Delivery with pneumatic sheet alignment system and straightening strip
Powder GRAFIX DIGITAL
SUPER BLUE
Automatic central lubrication
Platforms on both sides of the machine along with containers for tools
Machine without perfection
Extra equipment:
DOSER MIX2 – automatic water dispensing and stabilization
Remote control panel ADACONTROL III (Software CIP 3 PPF format)
SIMCO
SUPER BLUE on all cylinders rotating
Electronic – acoustic control of the side brand
Machine in good working condition
Test is possible.
We will appreciate if you make your price offer !
